Albaufstieg

Steinbühl Railway Tunnel: Safe with Shotcrete

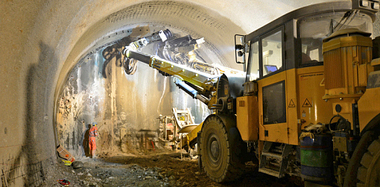

After blasting, the tunnel workers secure the tunnel surface with shotcrete. Concrete and accelerator mix in the shotcrete buffalo Quelle/credit (2): HeidelbergCement/Fuchs
After blasting, the tunnel workers secure the tunnel surface with shotcrete. Concrete and accelerator mix in the shotcrete buffalo
Quelle/credit (2): HeidelbergCement/Fuchs
One of the two roofs of the Steinbühl tunnel already secured with shotcrete. HGVs transport out the excavated rock and earth around the clock
One of the two roofs of the Steinbühl tunnel already secured with shotcrete. HGVs transport out the excavated rock and earth around the clock

Deutsche Bahn’s newly built route from Wendlingen to Ulm is a mecca for discerning tunnel builders. This is because half of the route passes through tunnels, which cut through a wide range of different rock strata.  A variety of construction methods are required: To create the first tunnel, the Steinbühl tunnel, the shotcrete construction method is used.

The 4.8 km long Steinbühl tunnel, together with the Boßler tunnel, will help trains with the difficult climb at Albaufstieg. It is entered at Hohenstadt, at an altitude of 746 metres, close to the A8 Autobahn. In eight years’ time, trains will...

Find out more in

tunnel 06/2014

Find out more in

tunnel 06/2014
