Germany, U12 Stuttgart

Diversion of the Stuttgart Stadtbahn Tunnel in the Heilbronner Straße

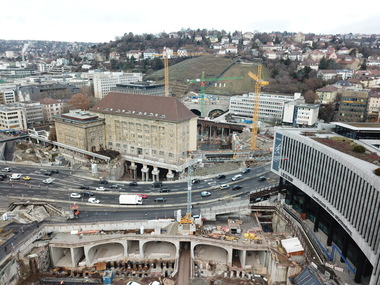

The Heilbronner Straße Stadtbahn tunnel is a preparatory measure for Stuttgart 21. The project is technically complex and challenging due to its inner-city location Quelle/credit: HeidelbergCement/Steffen Fuchs
The Heilbronner Straße Stadtbahn tunnel is a preparatory measure for Stuttgart 21. The project is technically complex and challenging due to its inner-city location
Quelle/credit: HeidelbergCement/Steffen Fuchs

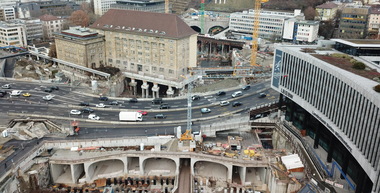

The altogether 1600 m of tunnel was excavated conventionally. After the excavation of a short section of the tunnel cross-section, support consisting of steel lattice arches and reinforced shotcrete was installed immediately
The altogether 1600 m of tunnel was excavated conventionally. After the excavation of a short section of the tunnel cross-section, support consisting of steel lattice arches and reinforced shotcrete was installed immediately

Construction work on Line U12 of the Stuttgart Stadtbahn between the main station and the city library will continue until the middle of 2016 (the Stadtbahn network is run by the Stuttgarter Straßenbahnen AG (SSB) and developed from the city tram system; it runs underground in the city centre and along roads in outer areas). Since the main line tunnel to the new underground main station, which is part of the Stuttgart 21 project, is planned to run at almost the same level as the existing Stadtbahn tunnel under the Heilbronner Straße, the existing line from the main station to the city library...

Find out more in

tunnel 02/2015

Find out more in

tunnel 02/2015
